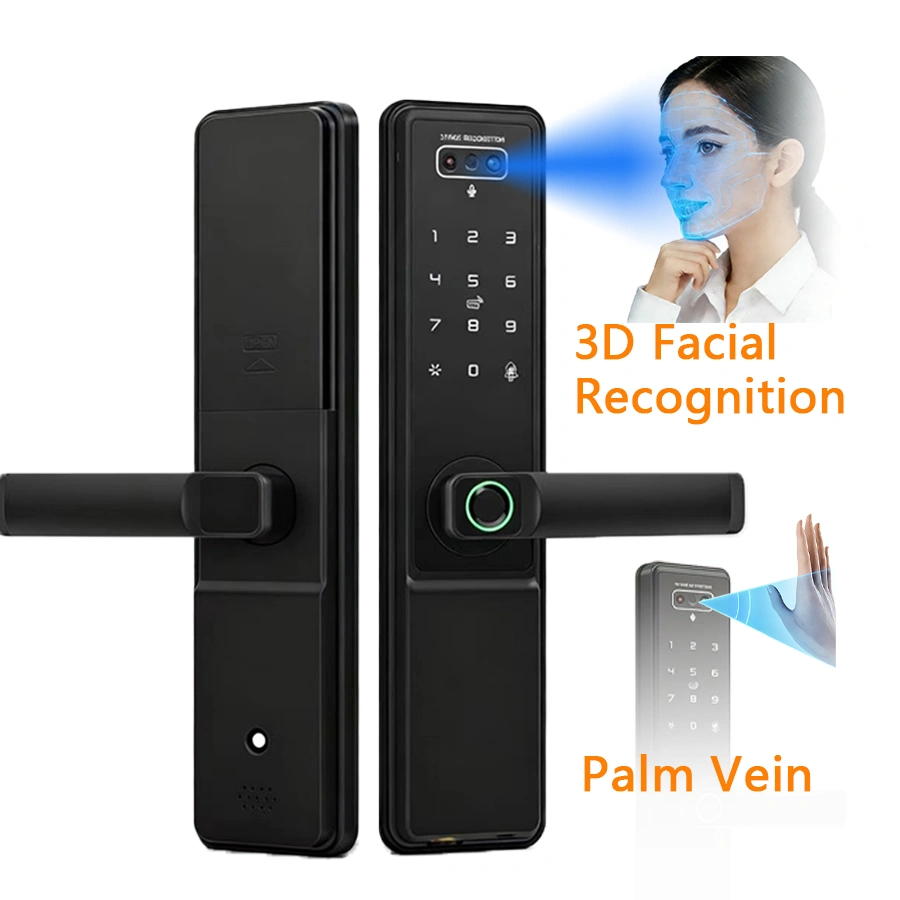

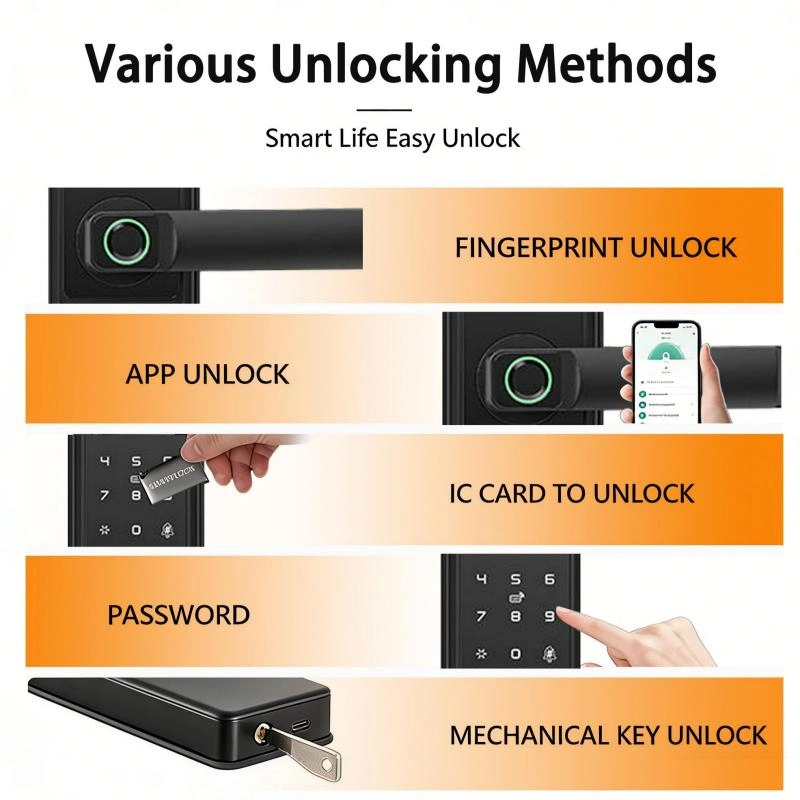

Unlocking methods: 3D facial recognition, Password, Fingerprint, Card, Key, Tuya WiFi / TT Lock App.
Function Introduction:
①Real-time video intercom with camera.
②With lock prevention knob.
| Item | Specification |
|---|---|
| Compatible lock body | Standard lock body – 5050 lock body Lock body options: 50-70mm single tongue lock, 72-hole keyhole, 85-hole keyhole |

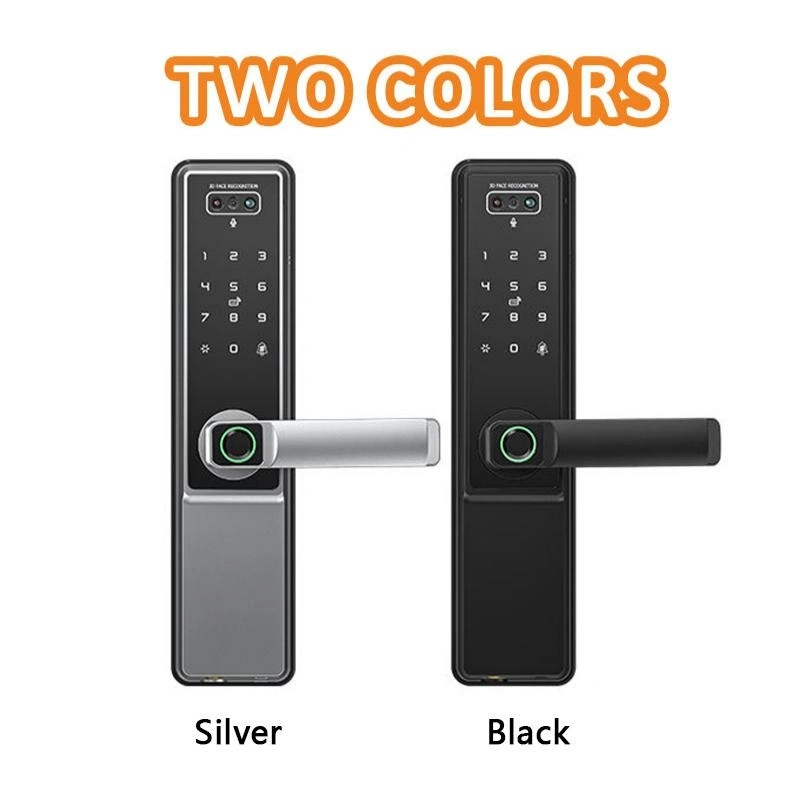

| Color | Black / Silver |
| Material | Aluminum alloy cover, acrylic panel |
| Power type | Lithium battery |
| Language | Support 8 languages |
| Lock cylinder type | C-level |
| Fingerprint collection | Semiconductor |
| Electric current | Working current: ≤180mA Static current: ≤50UA |
| Emergency power supply | 5V DC |
| Administrator users | 9 |
| Camera pixel/resolution | 300,000 / 640*480 |
| User capacity | 250 (cards, passwords, fingerprints) |
| Door thickness | 35-55mm |
| Fingerprint comparison time | ≤0.6S |
| False rejection rate | ≤0.1% |
| False recognition rate | ≤0.0001% |
| Working temperature | -25℃ – 60℃ |
| Working environmental humidity | 20%-90%RH |
| Panel size | 280*65*21mm |
| Box/Weight | 10 pieces per box, 21KG |
| Packaging size | 66.5*37.8*39CM |
3-year warranty; Part failure, replacement without repair. Help You Make More Money
