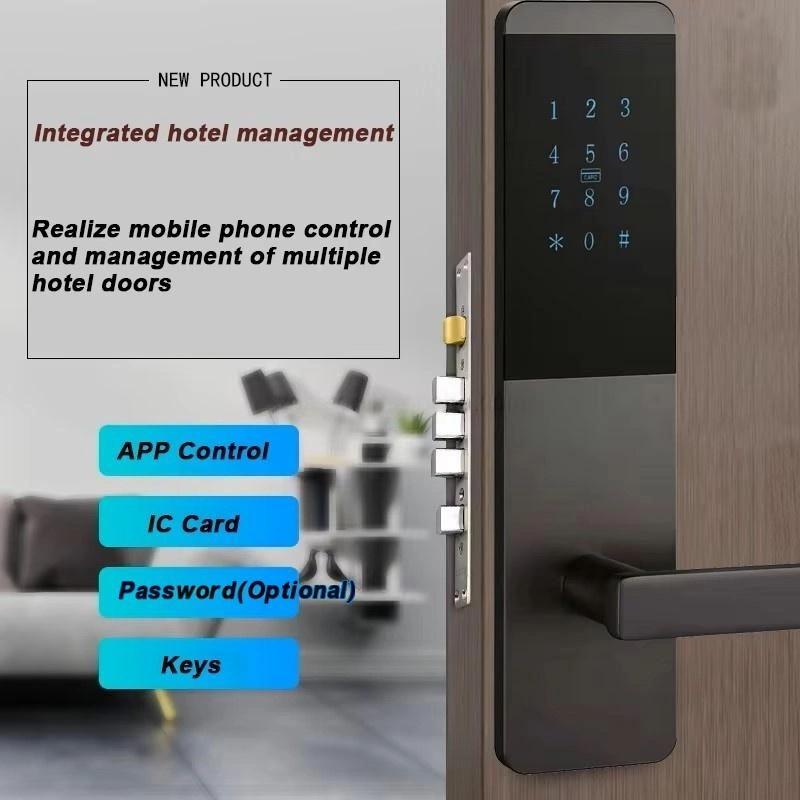

Unlocking methods: Card swipe / WeChat mini program, Mechanical key, Password (optional).
| Item | Specification |
|---|---|
| Compatible lock body | European standard 6# short lock body American standard 2# short lock body |
| Available colors | Sand Black/Sand Gold/Starry Gray/Mocha Brown |
| Suitable door thickness | 38-50mm(customizable according to customer needs) |
| Main material | Aluminum alloy |

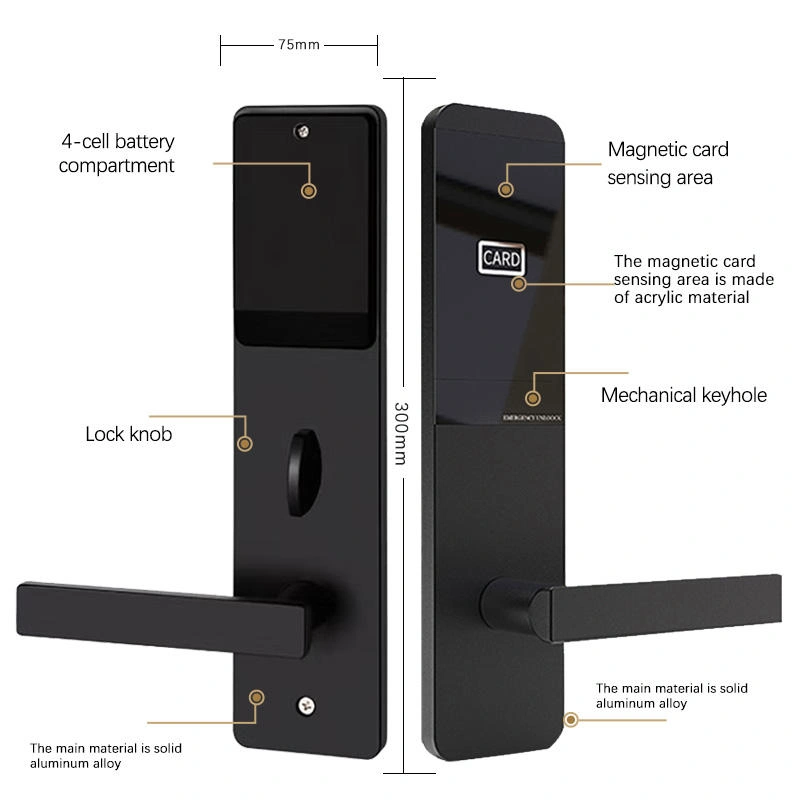

| Panel size | 300*75*12mm |
| Applicable places | hotels/guesthouses/schools/government and enterprises/homestays/apartments…… |
| Surface treatment | Spray painting |
| Lock cylinder type | C-level |
| Fingerprint collection | Semiconductor |
| Anti-lock function | Yes |

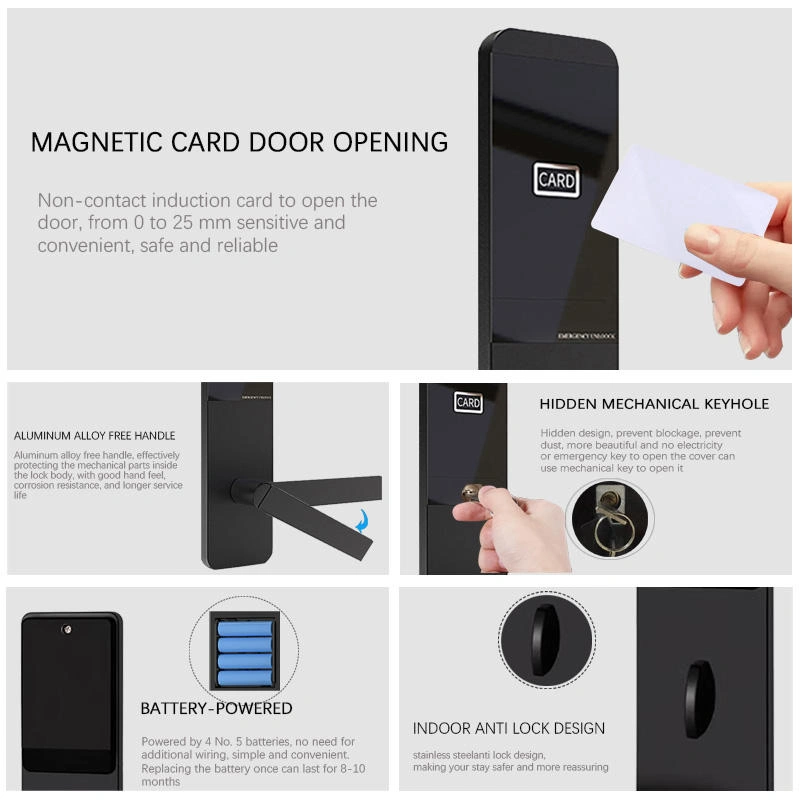

| Card reading | Card reading time: Less than 0.5 seconds Card reading distance ≤3 cm Card reading frequency: High frequency (1.56 MHZ for one-card) |
| Working voltage | DC 6V(4 alkaline A4 batteries) |
| Mechanical life | Approximately 100,000 times of normal continuous operation |
| Static power consumption | <90uA |
| Dynamic power consumption | <500mA |
| Motor driving force | <250mA driving capacity |
| Low-voltage alarm | <4.5V(can be turned on about 100 times) |
| Lock opening records | Store the latest 2,000 lock opening records(Including mechanical key unlocking) |
| Operating temperature | -10 to 65℃ |
| Working humidity | 20% to 93% |
| Working voltage | >1500V |
| Language | Multi-language |
3-year warranty; Part failure, replacement without repair. Help You Make More Money
