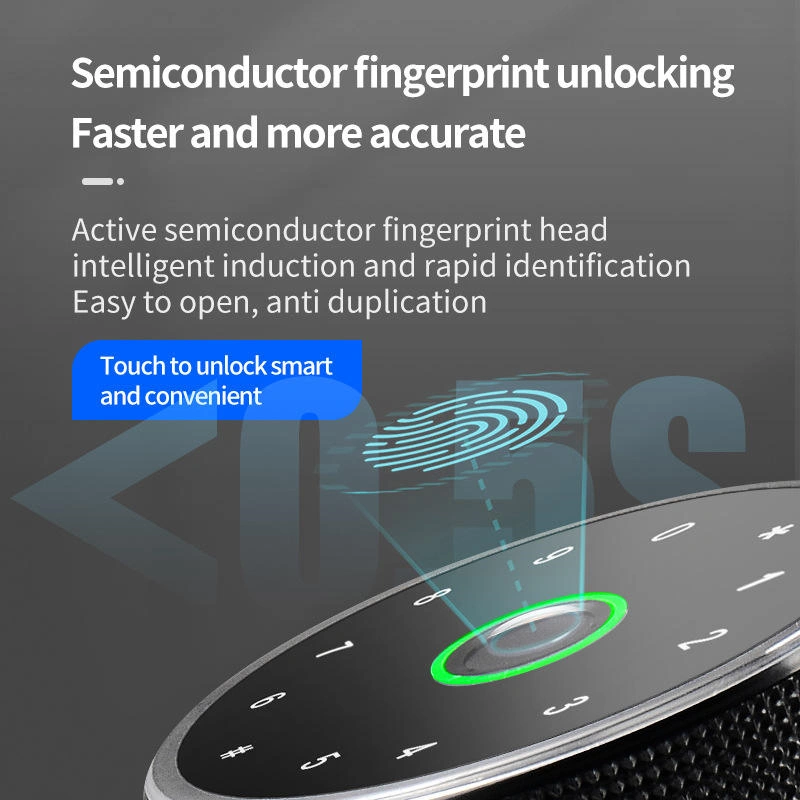

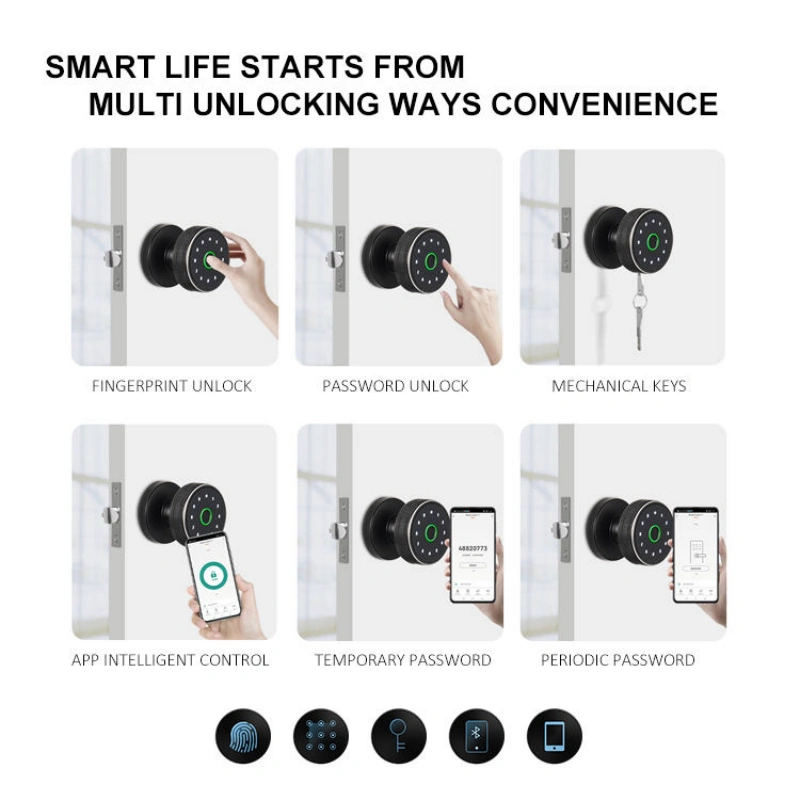

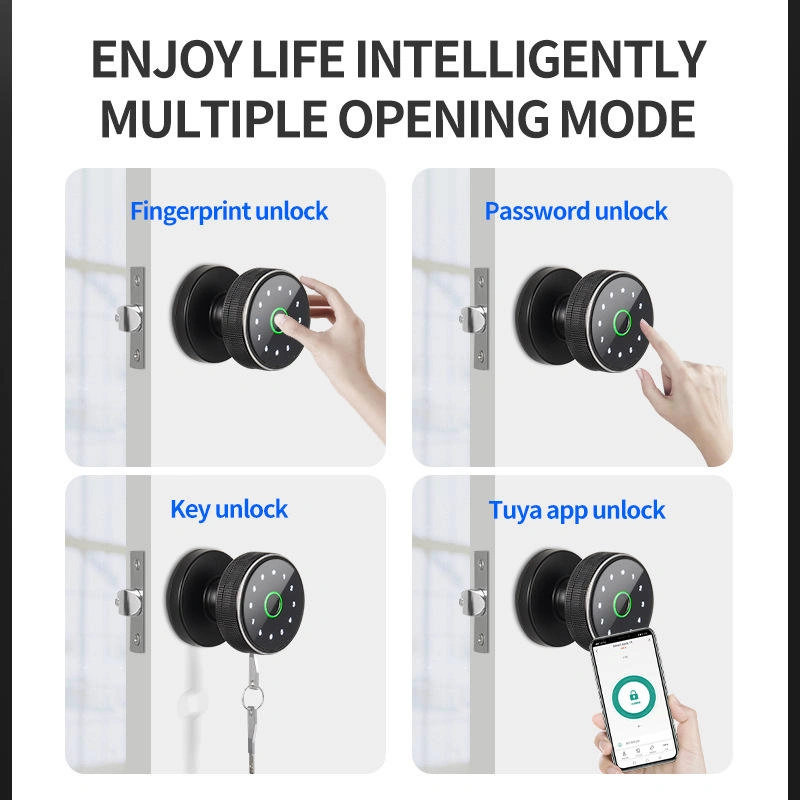

Unlocking methods:Fingerprint, Password, TUYA Bluetooth, Temporary Password, Mechanical Key – five locking methods.
Number of fingerprint groups: 50, Number of password groups: 40, Number of Bluetooth groups: unlimited.

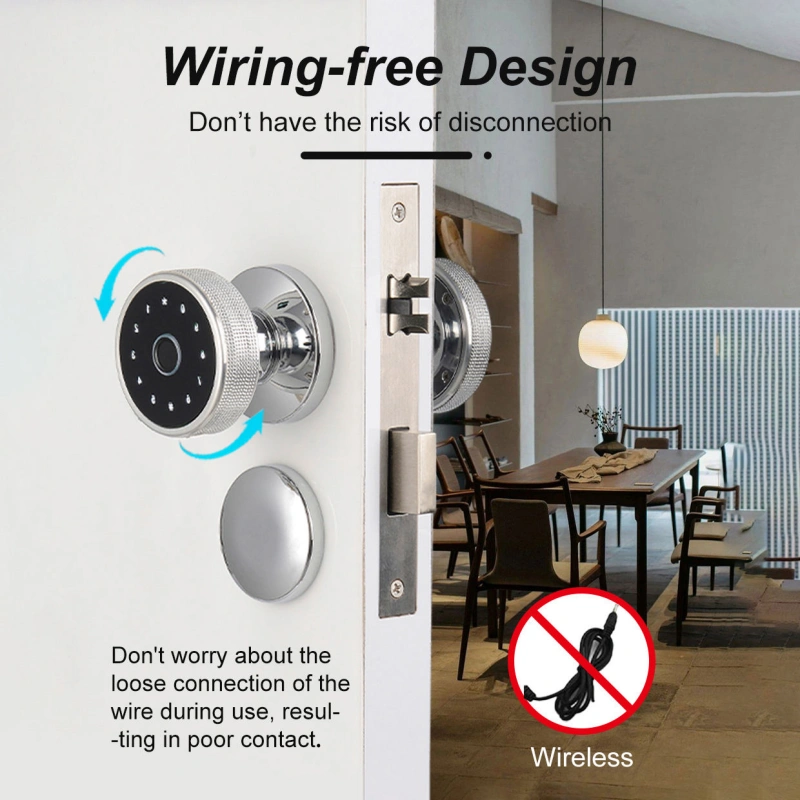

No wiring structure, no power line connection between the front and rear handles.
All-metal modular clutch structure, high-quality motor drive principle, safer than clutch driven by electromagnetic valve. The wiring-free structure is more convenient for installation, and the modular structure makes the product more stable and reliable.
Standard 800 mAh rechargeable lithium battery, can be used for 1500 openings after one charge. USB charging design.
Real human voice navigation;
Always-on mode selection;
Chinese and English switching;

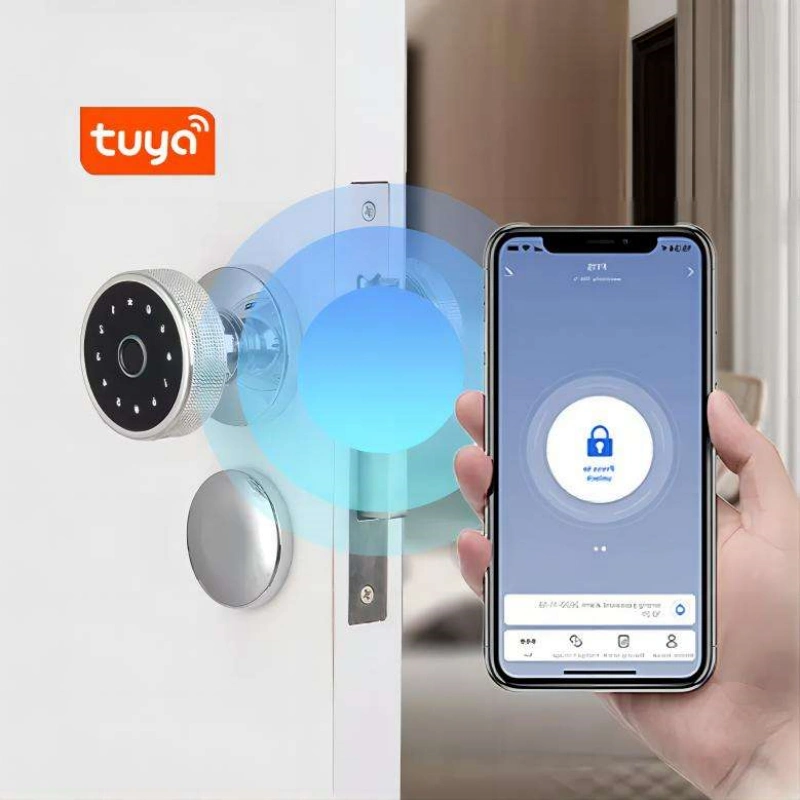

Optional Graffiti Bluetooth gateway to achieve remote unlocking function.
Optional double-sided fingerprint unlocking configuration;
| Item | Specification |
|---|---|
| Standard | 60MM single-tongue lock. Optional: 50MM lock, 70MM lock, 60-70MM adjustable lock. |
| Door thickness compatibility | 35 – 50MM (for thickness beyond this range, please specify). |
| Two color options | matte black, moonlight silver. |
| Material | Profile aluminum + zinc alloy. |
| Diameter of round handle | 67MM, diameter of base: 66.66MM. |
3-year warranty; Part failure, replacement without repair. Help You Make More Money
