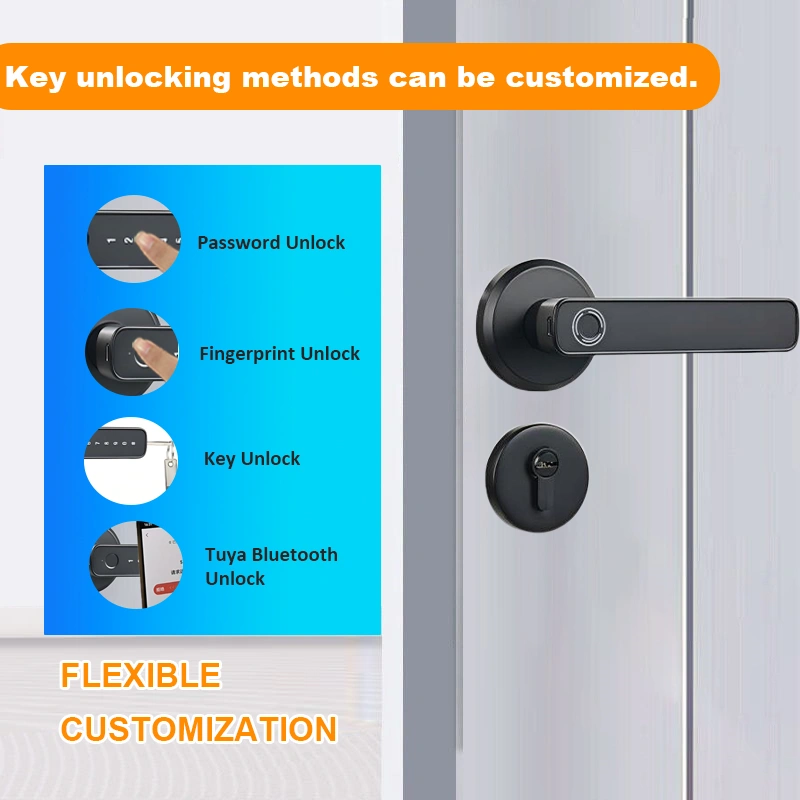

Unlocking methods: Password, Fingerprint, Key, Tuya App. Supports one-time temporary password and time-limited password.
Product Introduction：
①It can be matched with the Tuya Bluetooth gateway to achieve remote unlocking. The locking end can be operated independently, but the “Tuya Smart” APP must be downloaded because the mobile phone administrator is the ultimate administrator.
②The handle has an emergency lock core.
③Front and rear handle wiring structure.
④Full Metal Clutch Structure, High-Quality Motor Drive Principle, Safer than Electromagnetic Valve Drive Clutch.
⑤Suction-type Battery Cover Structure.
| Item | Specification |
|---|---|
| Compatible lock body | Standard 5572 round-head double quick-lock body, Backplate dimensions: 22*235mm. (For square heads, please provide a special order note. Square head backplate: 22*240mm) Large 70mm single lock core. |
| Suitable door thickness | 30 – 50mm (Thickness beyond this range needs to be specified) |
| Color | Black |
| Material | Handle material: Aluminum alloy; Handle cover material: Aluminum alloy; Lock core cover material: Zinc alloy |
| Diameter | Handle cover diameter: 70.66mm; Lock core cover diameter: 55mm |
| Language | Chinese and English switch |
| Power supply method | Four AA dry batteries |
| Lock cylinder type | C-level |
| Fingerprint collection | Semiconductor |
| User capacity | 50 fingerprints, 100 password groups, with indicator light, unlimited Bluetooth groups. |
| Emergency unlocking | USB emergency charging for unlocking, Type C charging port |
| Voice prompt | Real human voice navigation |
| Packaging | Aircraft box with pearl cotton packaging |
| Weight | Single set gross weight: 1.63kg; Gross weight of one box: 20.50kg. |
| Box size | Inner box size: 26*17*9cm; Outer box size: 54*35.5*29cm |
3-year warranty; Part failure, replacement without repair. Help You Make More Money
